Three predictions from a font chapter

A training plan is a stack of bets, and most of them can't be checked until the compute is spent. This one had three that could: measured against the frozen round-1 artifacts, the domain knowledge behind glyph's round-2 plan went one-for-three — one bet dead, one confirmed, one right only after the corpus corrected it.

A plan is a stack of bets

Round 1 (experiment 09) was domain-blind on purpose: serialize outlines to text, train, measure compression and parse rate. Its failures came back in ML vocabulary — unexplained variance, overfit gaps, termination failures, a loss metric that disagreed with the product. True, and inert.

Then a craft chapter entered the context window. Dan Hollick's "How to make a font" names the axes hands differ along (weight as Bigelow's ratio of x-height to stem thickness, x-height, width), the order designers derive letters in, and the optical corrections a drawn letter must carry — round bottoms overshoot the baseline, stem feet sit exactly on it. The draft round-2 training plan is that chapter operationalized: condition on measured axes, warm-start along derivation lineage, checkpoint on craft rules instead of loss alone. Roughly fifty training runs, if taken at face value.

But three of the plan's load-bearing claims are predictions about the corpus and the instruments, not about a trained model — which means they are also the plan's own pre-training gates, checkable now against round 1's frozen artifacts: the encoded corpus, the omni-xl checkpoint, and 1,664 samples per arm. So this round trains nothing and measures everything the plan lets it. Two new living instruments do the work: measure_axes.py and craft_score.py.

Prediction one: the axes explain the variance. Dead.

The plan's biggest arm — a conditioned 47.8M generalist — rides on the claim that the 759 hands the model carries as unexplained variance differ along the chapter's three standardized axes. Half of that claim measures beautifully. Per instance, from the quantized corpus itself: stem thickness from scanlines through l and i at half x-height, x-height and ascender from exact curve extrema, width from mean advance. The instrument checks out against the chapter and against the fonts' own declarations.

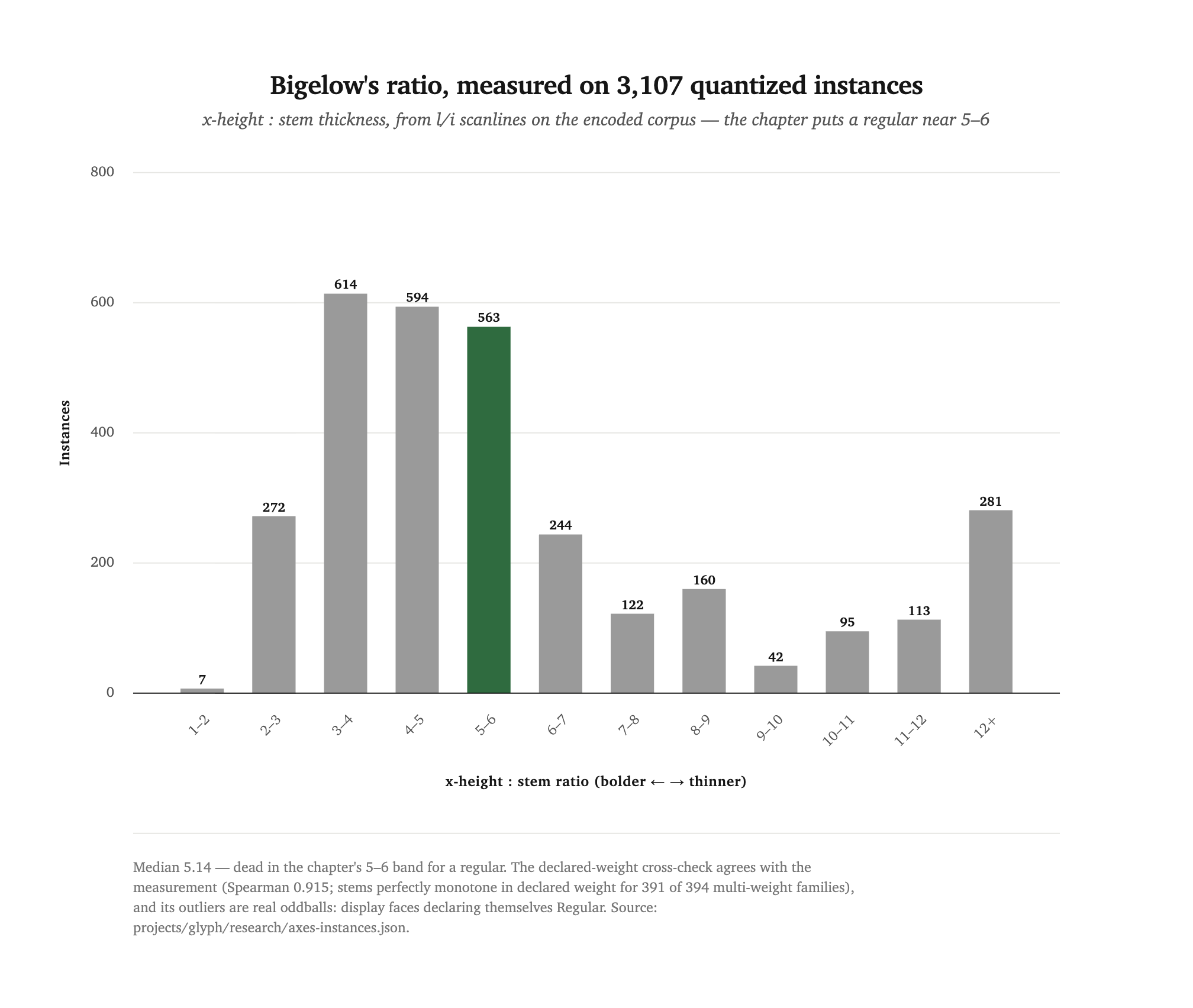

The distribution lands where the chapter said it would. The green band is Bigelow's regular:

Median 5.14, in a corpus the chapter never saw, measured through a 16-unit grid. The declared-weight cross-check agrees: Spearman 0.915 between declared weight and measured stem, and within the 394 families carrying three or more weights, stems are perfectly monotone in declared weight for 391. The three outlier families are real oddballs — display faces like Bytesized declaring themselves Regular while drawing a stem three-quarters of an x-height wide. The measurement is fine. The premise is not.

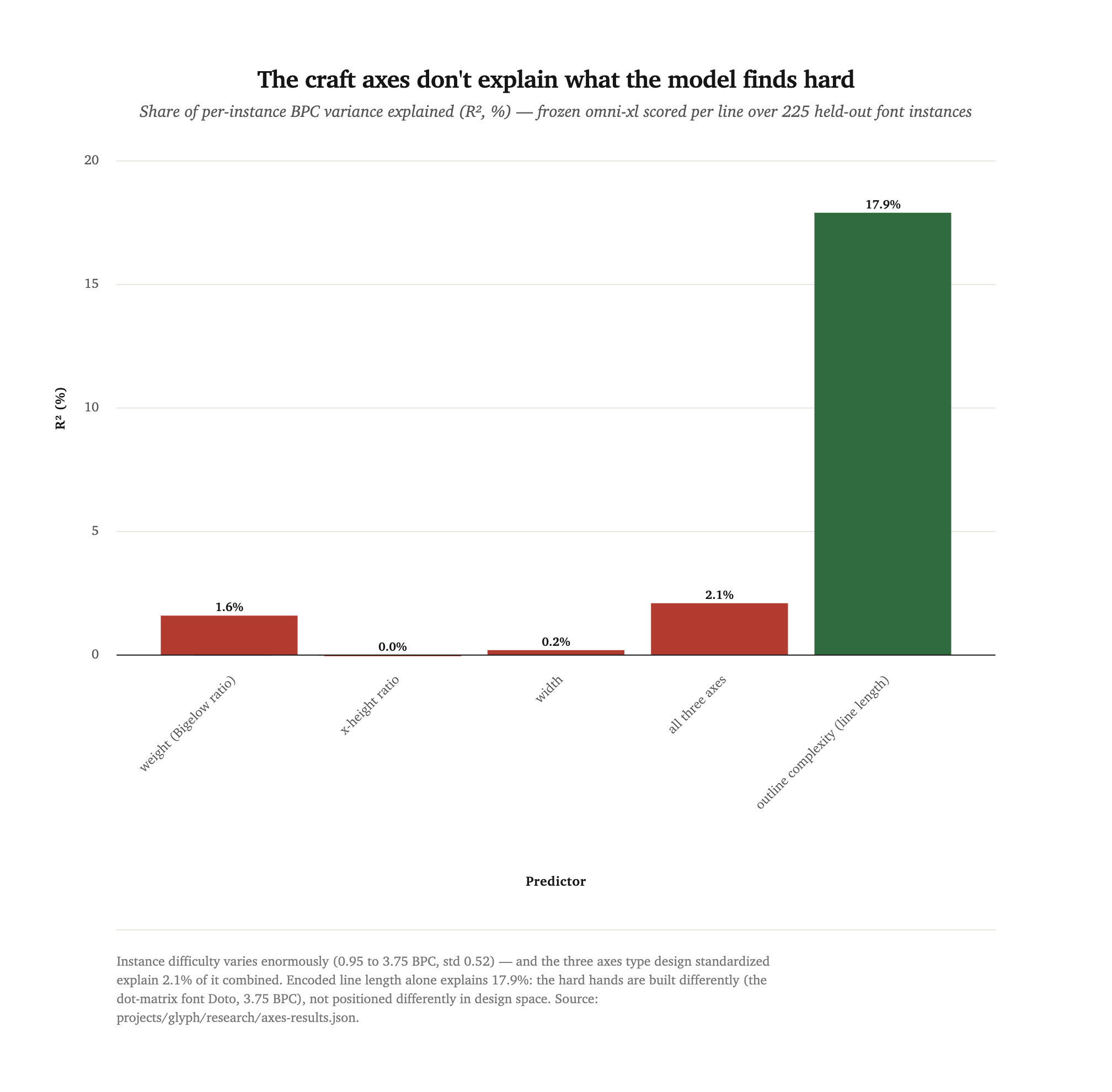

Scoring the frozen omni-xl per line over 225 held-out instances (6,142 lines; 1,484 dropped as duplicates of training families) gives each hand a difficulty number, and the hands differ enormously: 0.95 to 3.75 BPC, standard deviation 0.52. The variance the plan wants to explain is real. Look at what fails to explain it — the red bars:

All three axes together: R² = 0.021. Encoded line length alone: 0.179. The easiest hands are conventional grotesques (Golos Text at 0.95 BPC); the hardest is Doto at 3.75 — a dot-matrix face whose every glyph is dozens of tiny squares. The hard hands are not heavy or narrow or small-eyed. They are built differently — and no three-number summary of design-space position sees that.

Two honesty notes on the number. The corpus compresses two of the three axes into almost nothing — the x-height ratio's middle quartiles span 0.694 to 0.714 in an upright sans pool — so their zero is partly restriction of range. But weight spans 1.33 to 38 and still explains 1.6%. And the regression only kills the premise as stated: conditioning-as-difficulty- explanation. Conditioning as a steering knob — draw me a bold, wide g — is untouched by this measurement, because a signal can pick which glyph gets drawn without making any glyph easier to predict. What died is the plan's prediction that conditioning makes training easier and buys BPC.

Prediction two: quantization erased overshoot. Wrong — it binarized it.

Gate 0 was the plan's own suspicion about its instrument: typical overshoot is 1–1.5% of the em, the codec's grid step is 16/1024 ≈ 1.6%, and the chapter never quantifies "slightly" — so the round-2 craft score might be built on a signal the corpus no longer carries. The plan's rule: if fewer than ~60% of round-letter instances keep a full-step dip, drop overshoot from the composite.

Measured with exact curve extrema over 3,152 instances: o dips below the baseline in 87.2% and dips a full grid step in 87.1%. The gap between "any dip" and "full-step dip" is a rounding error on every round letter — quantization didn't attenuate overshoot, it snapped each instance's dip to 0 or 16 units, and for six hands in seven it snapped down, to the full step. The median surviving dip is exactly one grid step. The signal is present, learnable, and scoreable; the gate passes at 85–88% against its 60% bar. The x-height side is fainter (64–65% rise above the flat-letter median) but present.

Prediction three: the shape grouping. Right after the corpus fixed it.

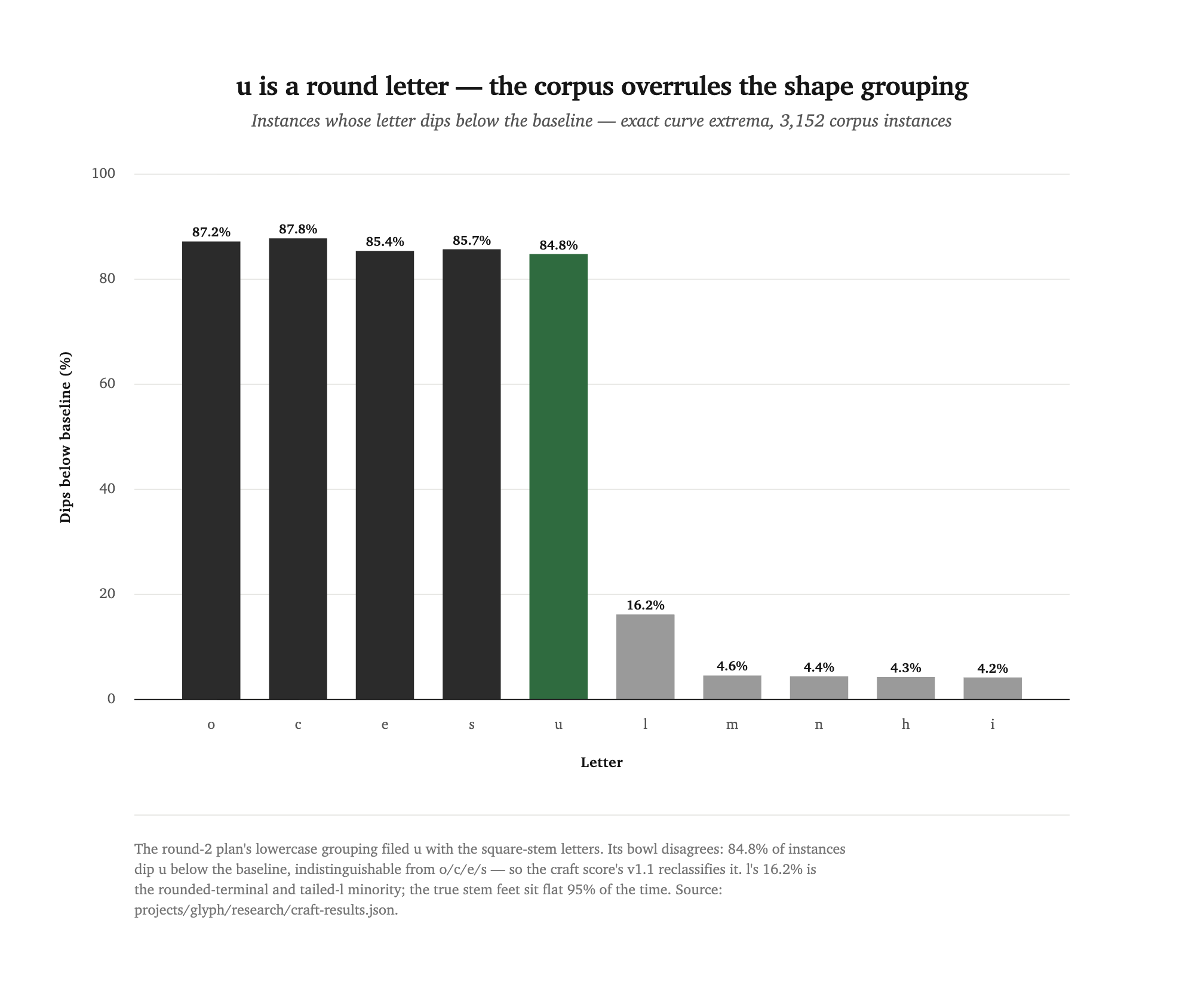

The craft score's v1 rules were pre-registered before any number was looked at: round letters (o c e s) must dip below the baseline; flat letters (h i l m n u) must sit on it within 2 em-units. The flat set came from the round-2 plan's lowercase adaptation of the chapter's uppercase-only shape groups. The corpus vetoed one placement immediately:

Type designers treat u's bowl bottom as a round bottom: 84.8% of instances dip it below the baseline, statistically at home with o c e s and nowhere near the true stem feet at 4–5%. Its top never crosses the x-height (1.4%) — flat stem tops, round bowl bottom, a letter the uppercase grouping has no slot for. The score's v1.1 reclassifies it, exactly the correction mechanism the plan specified for a score that disagrees with reality. (l's 16.2% is a genuine minority of rounded-terminal and tailed designs, not a misclassification — the other stem letters sit flat 95% of the time.)

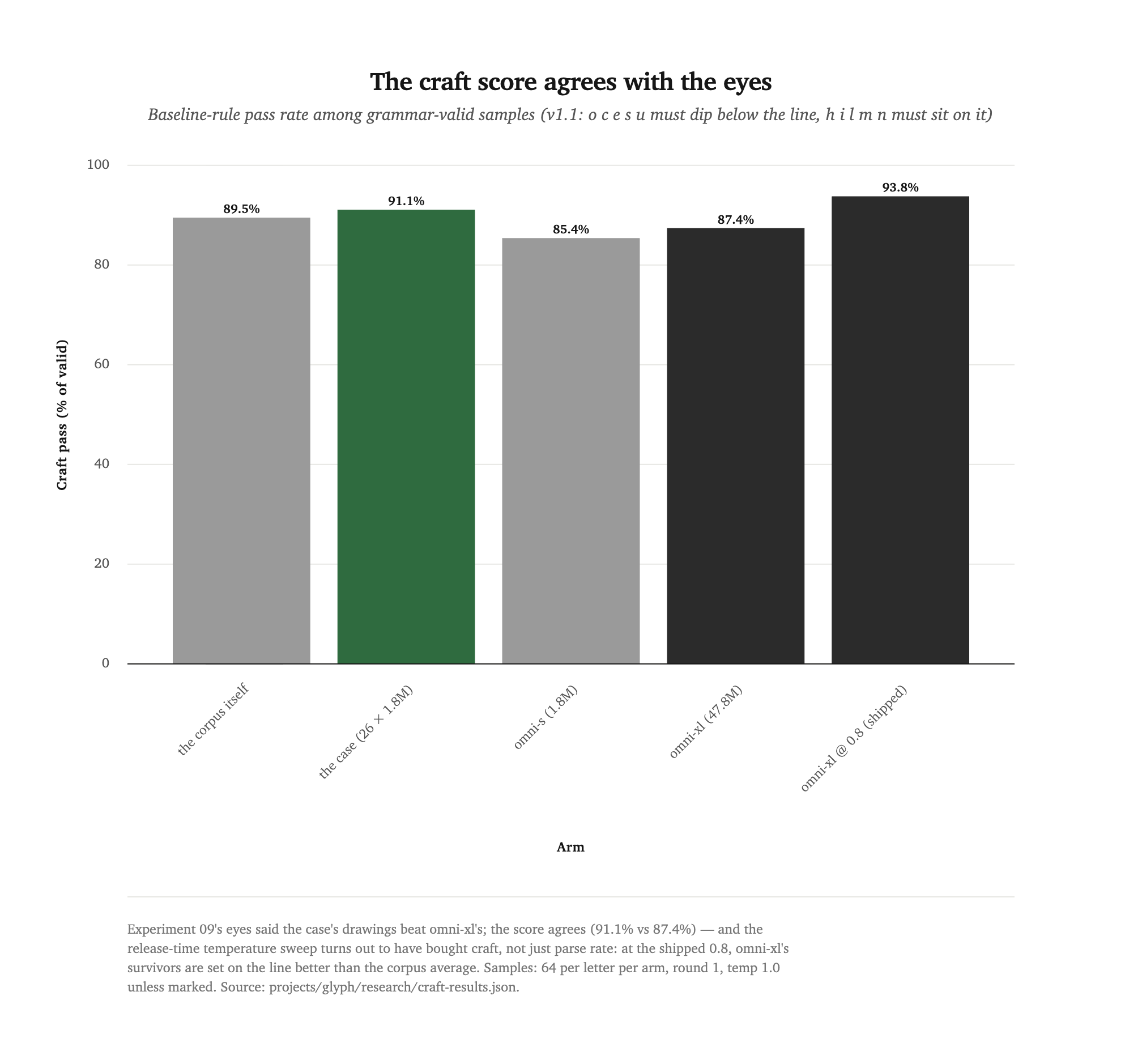

With the corrected instrument, the eyes-test. Experiment 09's on-record visual ranking said the case's drawings beat omni-xl's, with a gap wider than the parse rates suggested. The score agrees, in both the pre-registered and corrected versions — and the corpus itself, scored as an arm, becomes the reference bar:

Three things fall out. The case out-crafts omni-xl among valid samples, 91.1% to 87.4% (80.8% to 79.0% under v1) — the score ranks the arms the way the specimen sheets did. omni-s, whose 94.2% parse rate led round 1's grammar table, lands last on craft (85.4%): finishing letters and setting them on the line are different skills, and the little generalist only has the first. And the release-time temperature sweep, run in round 1 purely to lift omni-xl's parse rate, turns out to have bought craft too: at the shipped 0.8, survivors pass 93.8% — above the corpus's own 89.5%.

The split under the composite is sharper than the headline. Every arm over-overshoots: round-letter pass rates run 94–99% against the corpus's 86% — the models learned the majority behavior and regularized the exceptions away. Every arm at temperature 1.0 under-sits: flat-letter pass runs 77–86% against the corpus's 93%. Overshoot is a majority habit, and majority habits are what small models amplify; sitting flat is a precision behavior with no tolerance, and sampling noise eats it.

Be honest: what a training-free round can't say

• No model trained means no model improved. The 92.1%-valid debt from round 1 stands untouched. This round repriced the plan that would pay it; it paid nothing itself.
• The regression kills a premise, not the lever. Conditioning's steerability value is untestable without a conditioned model — R² = 0.021 rules out "the axes explain difficulty," not "the axes steer sampling." A future conditioned arm should be justified as a knob, and expected to buy no BPC.
• The craft score is necessary, not sufficient. It checks whether a glyph is set on the line, not whether it is a good letter — the case's 3.7-point craft margin over omni-xl is far narrower than the visual gap in the specimen sheets. A score for letterform quality still doesn't exist.
• The samples-side score is baseline-only. A sampled glyph carries no hand context, so the x-height overshoot rule can't be checked on model output — corpus mode checks both sides, sample mode one.
• 225 instances, one model, one ranking. The regression's n is the held-out split of one corpus; the difficulty scores come from one frozen checkpoint; the eyes-test compares against a single on-record ranking (case over omni-xl). Complexity's 17.9% is correlation, not mechanism — line length and construction style arrive together.

What this does to the round-2 plan

The expensive half of the plan is now differently priced. Its conditioning arm — the biggest single cost — lost its headline justification and keeps only the steerability one. Its checkpoint-selection score is validated, corrected (v1.1), and already ranks arms the way eyes do. Its Gate 0 and Gate 1 are run and passed: overshoot survives at 85–88%, and the corpus-quantile bin edges the conditioning spec asked for are computed and committed (weight bins at ratio 3.50/4.43/5.67/8.25; the x-height and width axes barely vary in-corpus, which is its own argument against conditioning on them). Per-letter budgets and the relative-codec pilot are untouched by any of this. A cheaper, better-aimed round 2 is available whenever the studio wants it — and it inherits both instruments unchanged.

What the finding means: domain knowledge in the context window named round 1's failure modes, built its measuring sticks, and made its predictions — and the predictions went one-for-three. The chapter was never wrong about type; it was wrong about what a language model finds hard, which is not a question the chapter ever claimed to answer. Craft knowledge writes the instruments. The corpus decides the bets.

Reproduce it

uv run python projects/glyph/craft_score.py            # Gate 0 + the craft composite
uv run python projects/glyph/measure_axes.py           # axes, bins, cross-check, regression
uv run python projects/glyph/measure_axes.py --no-bpc  # skip the checkpoint scoring

Results land in projects/glyph/research/{craft-results,axes-results,axes-instances}.json; the round-1 inputs (checkpoints, samples) are the frozen runs/*-r1 evidence.

Credits

Measurements, instruments, and this write-up: Claude Fable 5 (Claude Code). Direction and the train-nothing-first call: Romello Goodman. Craft grounding: Dan Hollick's "How to make a font" (Making Software) — Bigelow's weight ratio, the optical-correction rules, and the shape-group idea this experiment's corpus talked back to. Round-1 evidence: experiment 09 and the glyph leaderboard.
